Image Arithmetic


Introduction



Image Arithmetic is where you take two images, do calculations on their color channels, and get a new resulting image that is a combination of the two.

A D V E R T I S E M E N T
These operations can be done with the Arithmetic tool in Paint Shop Pro, or "Calculations" in Photoshop.

This should be a pretty easy article with simple code and more looking at images.

The Code



Here follows the code that loads in .bmp images and allows you to do the arithmetic and display them.

The .bmp images are in the /pics folder and called photo1.bmp, photo2.bmp and photo3.bmp. You can download them here.

These are the source images in lower quality. They're taken while hiking in the Belgian Ardennes.





Here's the code, it should be very straightforward. In the double loop that performs the image arithmetic, currently the formulas for "average" are filled in, replace this part of the code by the code given in the next sections.

//declare image buffers
ColorRGB image1[320][240];
ColorRGB image2[320][240];
ColorRGB image3[320][240];
ColorRGB result[320][240];

int main(int argc, char *argv[])
{
    //set up the screen
    screen(320,240,0, "Image Arithmetic");

    //load the images into the buffers
    loadBMP("pics/photo1.bmp", image1[0], w, h);
    loadBMP("pics/photo2.bmp", image2[0], w, h);
    loadBMP("pics/photo3.bmp", image3[0], w, h);

    //do the image arithmetic (here: "average")
    for(int x = 0; x < w; x++)
    for(int y = 0; y < h; y++)
    {
        result[x][y].r = (image1[x][y].r + image2[x][y].r) / 2;
        result[x][y].g = (image1[x][y].g + image2[x][y].g) / 2;
        result[x][y].b = (image1[x][y].b + image2[x][y].b) / 2;
    }

    //draw the result buffer to the screen
    for(int x = 0; x < w; x++)
    for(int y = 0; y < h; y++)
    {
        pset(x, y, result[x][y]);
    }

    //redraw & sleep
    redraw();
    sleep();
}

Note that you could also use "result[x][y] = (image1[x][y] + image2[x][y]) / 2" instead of doing it for every color component separately, but this notation doesn't work for all examples.

Add


Addition is when you add the corresponding color channels of the images to each other. Each color component is a number between 0 and 255, so if the sum of the two colors becomes higher than 255, it has to be truncated to 255 again, by taking the minimum of the result and 255. Copypaste this into the arithmetic loop and run it to see the result of the sum of the two photos.

        result[x][y].r = min(image2[x][y].r + image3[x][y].r, 255);
        result[x][y].g = min(image2[x][y].g + image3[x][y].g, 255);
        result[x][y].b = min(image2[x][y].b + image3[x][y].b, 255);



The sky of the second photo is so bright, that adding the color components of the other image makes it so bright that the colors are truncated to 255 and thus extremely white. You can still recognize the cows in the bottom part of the image though.

Instead of doing this for all three the channels, you can also do it on only one color channel, but that would generate an excessive amount of screenshots here ;)

Subtract


Subtraction works in a similar way, but now you have to truncate negative results to 0.

        result[x][y].r = max(image2[x][y].r - image1[x][y].r, 0);
        result[x][y].g = max(image2[x][y].g - image1[x][y].g, 0);
        result[x][y].b = max(image2[x][y].b - image1[x][y].b, 0);

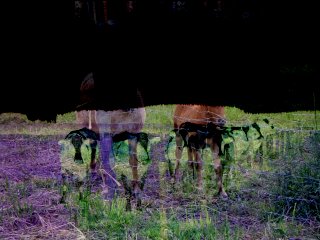

The cow picture is the one subtracted from the horses, so the cow picture's colors become negative. That explains the purplish colors. The bright sky subtracted from the flower makes the whole upper part pitch black.

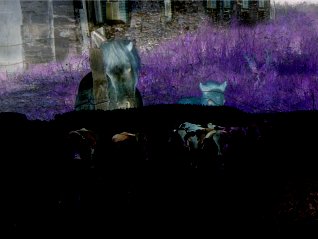

The order of subtraction is important, you get this if you subtract the second from the third instead:


Difference


Difference is almost the same as subtract, only now instead of truncating negative values, you take their absolute value. So you get the difference between the colors of both images.

        result[x][y].r = abs(image1[x][y].r - image2[x][y].r);
        result[x][y].g = abs(image1[x][y].g - image2[x][y].g);
        result[x][y].b = abs(image1[x][y].b - image2[x][y].b);

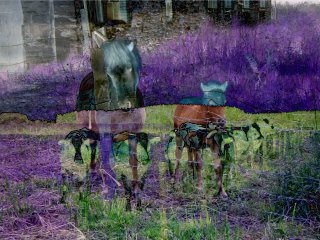

Now the places that were black in one image are filled with the color of the other image.

Multiply


To multiply, don't multiply the color component values from 0-255 with each other, then the maximum value would be 255 * 255 = 65025, and with such a big color value, you can't do much. Instead, convert the values to floating point numbers between 0 and 1, and multiply those. The result will then also always be between 0 and 1. After multiplication, multiply it with 255 again.

        result[x][y].r = int(255 * (image2[x][y].r / 255.0 * image1[x][y].r / 255.0));
        result[x][y].g = int(255 * (image2[x][y].g / 255.0 * image1[x][y].g / 255.0));
        result[x][y].b = int(255 * (image2[x][y].b / 255.0 * image1[x][y].b / 255.0));

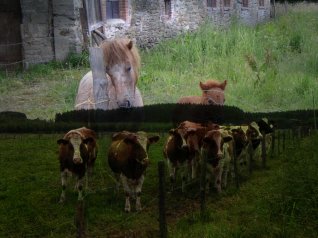

Here's the cow image multiplied with the horse image:



The bright sky of the cow image can be seen as value 1, and multiplying 1 with the horses keeps the horses, so the top part looks almost the same as the original horse image. The bottom part is the product of two darker parts, which becomes even darker.

Average

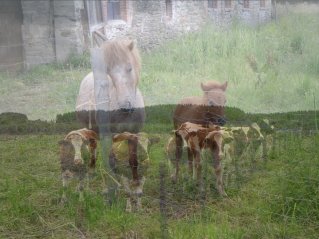

The average is gotten by adding the two images, and dividing the result through two.

        result[x][y].r = (image1[x][y].r + image2[x][y].r) / 2;
        result[x][y].g = (image1[x][y].g + image2[x][y].g) / 2;
        result[x][y].b = (image1[x][y].b + image2[x][y].b) / 2;



Cross Fading


Cross Fading can be achieved by using the Weighed Average, first the first image has a high weight and the second a low weight. But as time goes on, the weight of the second image is increased and the one of the first image decreased, resulting in a nice fade. Here's an example where the weight factor of the first image is 0.75, and the one of the second 0.25:

        result[x][y].r = int(image1[x][y].r * 0.75 + image2[x][y].r * 0.25);
        result[x][y].g = int(image1[x][y].g * 0.75 + image2[x][y].g * 0.25);
        result[x][y].b = int(image1[x][y].b * 0.75 + image2[x][y].b * 0.25);

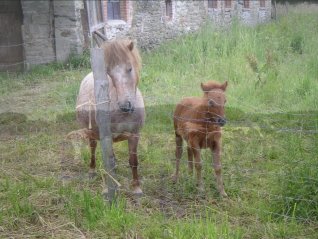

The horse image is now more visible than the cow image.

To do an actual cross fade, a modified main function has to be used, because the result has to be redrawn every frame and the time is taken into account. For that a new while loop is added, and the weight is the value weight that goes from 0 to 1 for the first image, and from 1 to 0 for the second by using "1 - weight".

Weight itself normally goes linearly from 0 to 1, but here something special is done: it's calculated as the cosine of the time, this means that the image will constantly fade from the first to the second, back to the first, back the second, and so on... Since the cosine gives a value between -1 and +1, while we want a value between 0 and 1, add 1 to it and divide the result through 2.

//declare image buffers
ColorRGB image1[320][240];
ColorRGB image2[320][240];
ColorRGB image3[320][240];
ColorRGB result[320][240];

int main(int argc, char *argv[])
{
    //set up the screen
    screen(320,240,0, "Image Arithmetic");

    //load the images into the buffers
    loadBMP("pics/photo1.bmp", image1[0], w, h);
    loadBMP("pics/photo2.bmp", image2[0], w, h);
    loadBMP("pics/photo3.bmp", image3[0], w, h);

    float weight;

    while(!done())
    {
        weight = (1.0 + cos(getTime() / 1000.0)) / 2.0;

        //do the image arithmetic
        for(int x = 0; x < w; x++)
        for(int y = 0; y < h; y++)
        {
            result[x][y].r = int(image1[x][y].r * weight + image2[x][y].r * (1 - weight));
            result[x][y].g = int(image1[x][y].g * weight + image2[x][y].g * (1 - weight));
            result[x][y].b = int(image1[x][y].b * weight + image2[x][y].b * (1 - weight));
        }

        //draw the result buffer to the screen
        for(int x = 0; x < w; x++)
        for(int y = 0; y < h; y++)
        {
            pset(x, y, result[x][y]);
        }

        //redraw
        redraw();
    }
}

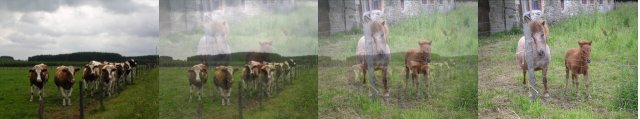

Here are a few frames:



Min and Max


This involves taking only value of the pixel with the lowest or highest value, for example taking the minimum of both:

        result[x][y].r = min(image1[x][y].r, image2[x][y].r);
        result[x][y].g = min(image1[x][y].g, image2[x][y].g);
        result[x][y].b = min(image1[x][y].b, image2[x][y].b);

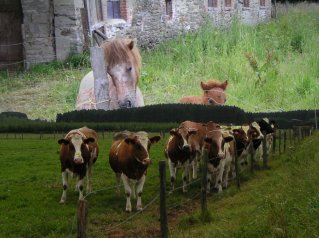

The result here is very obvious:



Because the cow image has such a bright sky, the darker horse image wins there. But in the bottom part, the horse image is brighter than the cows, so there the cows win. So this operation has filtered out exactly the sky of the cows and replaces that with the horses.

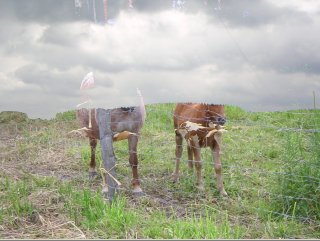

Taking the max instead does of course the opposite:

        result[x][y].r = max(image1[x][y].r, image2[x][y].r);
        result[x][y].g = max(image1[x][y].g, image2[x][y].g);
        result[x][y].b = max(image1[x][y].b, image2[x][y].b);



Amplitude

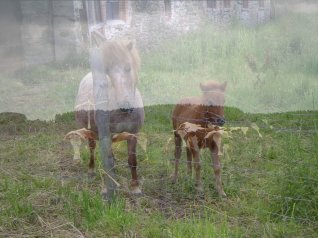

The amplitude is calculated by using the formula of the amplitude on the two corresponding color channels. This formula is sqrt(x² + y²). Because the result of this can be 1.41 times larger than 255, it's divided through 1.41 = sqrt(2.0) at the end. All sorts of conversions to double and back to int have to be typed as well because the standard sqrt function of the current gcc compiler gives an ambiguity error on integers instead of converting it.


		result[x][y].r = int(sqrt(double(image1[x][y].r * image1[x][y].r +
		image2[x][y].r * image2[x][y].r)) / sqrt(2.0));
        result[x][y].g = int(sqrt(double(image1[x][y].g * image1[x][y].g +
		image2[x][y].g * image2[x][y].g)) / sqrt(2.0));
        result[x][y].b = int(sqrt(double(image1[x][y].b * image1[x][y].b +
		image2[x][y].b * image2[x][y].b)) / sqrt(2.0));



AND, OR and XOR


What we're now going to do is apply the "&", "|" and "^" operators on the binary values of the color values. The results on normal photos are like, very ugly.

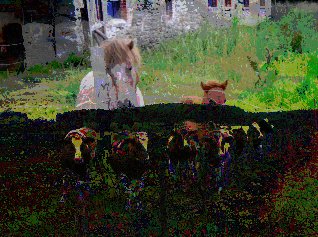

Here's the AND operator:


		result[x][y].r = image1[x][y].r & image2[x][y].r;
        result[x][y].g = image1[x][y].g & image2[x][y].g;
        result[x][y].b = image1[x][y].b & image2[x][y].b;

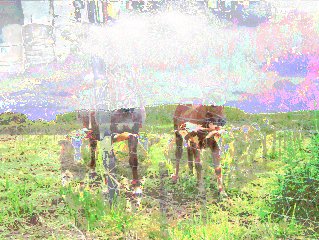

Or would you prefer OR?


		result[x][y].r = image1[x][y].r | image2[x][y].r;
        result[x][y].g = image1[x][y].g | image2[x][y].g;
        result[x][y].b = image1[x][y].b | image2[x][y].b;

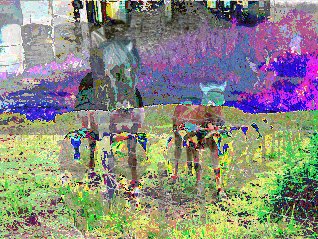

The result of the XOR operator also isn't immediately beautiful:


		result[x][y].r = image1[x][y].r ^ image2[x][y].r;
        result[x][y].g = image1[x][y].g ^ image2[x][y].g;
        result[x][y].b = image1[x][y].b ^ image2[x][y].b;



You never know when it comes in handy, maybe for encryption of images ;)

© Lode Vandevenne. Reproduced with permission.


Be the first one to comment on this page.




  Graphics eBooks
More Links » »

 Graphics FAQs
More Links » »

 Graphics Interview Questions
More Links » »

 Graphics Articles
More Links » »

 Graphics News
More Links » »

 Graphics Jobs
More Links » »

Share And Enjoy:These icons link to social bookmarking sites where readers can share and discover new web pages.
  • blinkbits
  • BlinkList
  • blogmarks
  • co.mments
  • connotea
  • del.icio.us
  • De.lirio.us
  • digg
  • Fark
  • feedmelinks
  • Furl
  • LinkaGoGo
  • Ma.gnolia
  • NewsVine
  • Netvouz
  • RawSugar
  • Reddit
  • scuttle
  • Shadows
  • Simpy
  • Smarking
  • Spurl
  • TailRank
  • Wists
  • YahooMyWeb

Previoushome Next

Keywords: Image Arithmetic, Graphics, Graphics, Graphics tutorial, Graphics tutorial pdf, history of Graphics, learn Graphics

HTML Quizzes
HTML Quiz
XHTML Quiz
CSS Quiz
TCP/IP Quiz
CSS 1.0 Quiz
CSS 2.0 Quiz
HLML Quiz
XML Quizzes
XML Quiz
XSL Quiz
XSLT Quiz
DTD Quiz
Schema Quiz
XForms Quiz
XSL-FO Quiz
XML DOM Quiz
XLink Quiz
XQuery Quiz
XPath Quiz
XPointer Quiz
RDF Quiz
SOAP Quiz
WSDL Quiz
RSS Quiz
WAP Quiz
Web Services Quiz
Browser Scripting Quizzes
JavaScript Quiz
VBScript Quiz
DHTML Quiz
HTML DOM Quiz
WMLScript Quiz
E4X Quiz
Server Scripting Quizzes
ASP Quiz
PERL Quiz
SQL Quiz
ADO Quiz
CVS Quiz
Python Quiz
Apple Script Quiz
PL/SQL Quiz
SQL Server Quiz
PHP Quiz
.NET (dotnet) Quizzes
Microsoft.Net Quiz
ASP.Net Quiz
.Net Mobile Quiz
C# : C Sharp Quiz
ADO.NET Quiz
VB.NET Quiz
VC++ Quiz
Multimedia Quizzes
SVG Quiz
Flash Quiz
Media Quiz
SMIL Quiz
Photoshop Quiz
Gimp Quiz
Matlab Quiz
Gnuplot Programming Quiz
GIF Animation Quiz
Scientific Visualization Quiz
Graphics Quiz
Web Building Quizzes
Web Browsers Quiz
Web Hosting Quiz
W3C Quiz
Web Building Quiz
Web Quality Quiz
Web Semantic Quiz
Web Careers Quiz
Weblogic Quiz
SEO Quiz
Web Site Hosting Quiz
Domain Name Quiz
Java Quizzes
Java Quiz
JSP Quiz
Servlets Quiz
Struts Quiz
EJB Quiz
JMS Quiz
JMX Quiz
Eclipse Quiz
J2ME Quiz
JBOSS Quiz
Programming Langauges Quizzes
C Quiz
C++ Quiz
Visual Basic Quiz
Data Structures Using C Quiz
Cobol Quiz
Assembly Language Quiz
Mainframe Quiz
Forth Programming Quiz
Lisp Programming Quiz
Pascal Quiz
Delphi Quiz
Fortran Quiz
OOPs Quiz
Data Warehousing Quiz
CGI Programming Quiz
Emacs Quiz
Gnome Quiz
ILU Quiz
Soft Skills Quizzes
Communication Skills Quiz
Time Management Quiz
Project Management Quiz
Team Work Quiz
Leadership Skills Quiz
Corporate Communication Quiz
Negotiation Skills Quiz
Database Quizzes
Oracle Quiz
MySQL Quiz
Operating System Quizzes
BSD Quiz
Symbian Quiz
Unix Quiz
Internet Quiz
IP-Masquerading Quiz
IPC Quiz
MIDI Quiz
Software Testing Quizzes
Testing Quiz
Firewalls Quiz
SAP Module Quizzes
ERP Quiz
ABAP Quiz
Business Warehousing Quiz
SAP Basis Quiz
Material Management Quiz
Sales & Distribution Quiz
Human Resource Quiz
Netweaver Quiz
Customer Relationship Management Quiz
Production and Planning Quiz
Networking Programming Quizzes
Corba Quiz
Networking Quiz
Microsoft Office Quizzes
Microsoft Word Quiz
Microsoft Outlook Quiz
Microsoft PowerPoint Quiz
Microsoft Publisher Quiz
Microsoft Excel Quiz
Microsoft Front Page Quiz
Microsoft InfoPath Quiz
Microsoft Access Quiz
Accounting Quizzes
Financial Accounting Quiz
Managerial Accounting Quiz
Testimonials | Contact Us | Link to Us | Site Map
Copyright ? 2008. Academic Tutorials.com. All rights reserved Privacy Policies | About Us
Our Portals : Academic Tutorials | Best eBooksworld | Beyond Stats | City Details | Interview Questions | Discussions World | Excellent Mobiles | Free Bangalore | Give Me The Code | Gog Logo | Indian Free Ads | Jobs Assist | New Interview Questions | One Stop FAQs | One Stop GATE | One Stop GRE | One Stop IAS | One Stop MBA | One Stop SAP | One Stop Testing | Webhosting in India | Dedicated Server in India | Sirf Dosti | Source Codes World | Tasty Food | Tech Archive | Testing Interview Questions | Tests World | The Galz | Top Masala | Vyom | Vyom eBooks | Vyom International | Vyom Links | Vyoms | Vyom World | Important Websites
Copyright ? 2003-2024 Vyom Technosoft Pvt. Ltd., All Rights Reserved.
