In a PL/SQL program statements are connected by simple but powerful control structures that defines flow of control through the program. Control structures that have a single entry and exit point and collectively these structures can handle any situation. Their proper use leads naturally to a well-structured program.
A D V E R T I S E M E N T
Overview of PL/SQL Control Structures

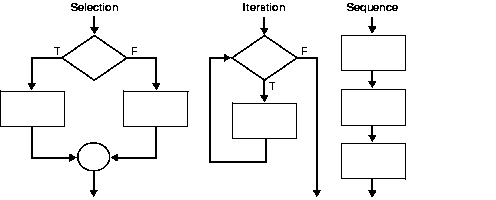

According to the structure theorem, any computer program can be written using the basic control structures shown in the figure below. They can be combined in any way necessary to deal with a given problem.
Control Structures
The selection structure tests a condition, then executes one sequence of statements instead of another, depending on whether the condition is true or false. A condition is any variable or expression that returns a Boolean value (TRUE or FALSE). The iteration structure executes a sequence of statements repeatedly as long as a condition holds true. The sequence structure simply executes a sequence of statements in the order in which they occur.
Conditional Control: IF and CASE Statements
Often, it is necessary to take alternative actions depending on circumstances. The IF statement lets you execute a sequence of statements conditionally. That is, whether the sequence is executed or not depends on the value of a condition. There are three forms of IF statements: IF-THEN, IF-THEN-ELSE, and IF-THEN-ELSIF. The CASE statement is a compact way to evaluate a single condition and choose between many alternative actions.
IF-THEN Statement
The simplest form of IF statement associates a condition with a sequence of statements enclosed by the keywords THEN and END IF (not ENDIF), as follows:
IF condition THEN
sequence_of_statements
END IF;
The sequence of statements is executed only if the condition is true. If the condition is false or null, the IF statement does nothing. In either case, control passes to the next statement. An example follows:
IF sales > quota THEN
compute_bonus(empid);
UPDATE payroll SET pay = pay + bonus WHERE empno = emp_id;
END IF;
You might want to place brief IF statements on a single line, as in
IF x > y THEN high := x; END IF;
IF-THEN-ELSE Statement
The second form of IF statement adds the keyword ELSE followed by an alternative sequence of statements, as follows:
IF condition THEN
sequence_of_statements1
ELSE
sequence_of_statements2
END IF;
The sequence of statements in the ELSE clause is executed only if the condition is false or null. Thus, the ELSE clause ensures that a sequence of statements is executed. In the following example, the first UPDATE statement is executed when the condition is true, but the second UPDATE statement is executed when the condition is false or null:
IF trans_type = 'CR' THEN
UPDATE accounts SET balance = balance + credit WHERE ...
ELSE
UPDATE accounts SET balance = balance - debit WHERE ...
END IF;
The THEN and ELSE clauses can include IF statements. That is, IF statements can be nested, as the following example shows:
IF trans_type = 'CR' THEN
UPDATE accounts SET balance = balance + credit WHERE ...
ELSE
IF new_balance >= minimum_balance THEN
UPDATE accounts SET balance = balance - debit WHERE ...
ELSE
RAISE insufficient_funds;
END IF;
END IF;
IF-THEN-ELSIF Statement
Sometimes you want to select an action from several mutually exclusive alternatives. The third form of IF statement uses the keyword ELSIF (not ELSEIF) to introduce additional conditions, as follows:
IF condition1 THEN
sequence_of_statements1
ELSIF condition2 THEN
sequence_of_statements2
ELSE
sequence_of_statements3
END IF;
If the first condition is false or null, the ELSIF clause tests another condition. An IF statement can have any number of ELSIF clauses; the final ELSE clause is optional. Conditions are evaluated one by one from top to bottom. If any condition is true, its associated sequence of statements is executed and control passes to the next statement. If all conditions are false or null, the sequence in the ELSE clause is executed. Consider the following example:
BEGIN
...
IF sales > 50000 THEN
bonus := 1500;
ELSIF sales > 35000 THEN
bonus := 500;
ELSE
bonus := 100;
END IF;
INSERT INTO payroll VALUES (emp_id, bonus, ...);
END;
If the value of sales is larger than 50000, the first and second conditions are true. Nevertheless, bonus is assigned the proper value of 1500 because the second condition is never tested. When the first condition is true, its associated statement is executed and control passes to the INSERT statement.
CASE Statement
Like the IF statement, the CASE statement selects one sequence of statements to execute. However, to select the sequence, the CASE statement uses a selector rather than multiple Boolean expressions. To compare the IF and CASE statements, consider the following code that outputs descriptions of school grades:
IF grade = 'A' THEN
dbms_output.put_line('Excellent');
ELSIF grade = 'B' THEN
dbms_output.put_line('Very Good');
ELSIF grade = 'C' THEN
dbms_output.put_line('Good');
ELSIF grade = 'D' THEN
dbms_output. put_line('Fair');
ELSIF grade = 'F' THEN
dbms_output.put_line('Poor');
ELSE
dbms_output.put_line('No such grade');
END IF;
Notice the five Boolean expressions. In each instance, we test whether the same variable, grade, is equal to one of five values: 'A', 'B', 'C', 'D', or 'F'. Let us rewrite the preceding code using the CASE statement, as follows:
CASE grade
WHEN 'A' THEN dbms_output.put_line('Excellent');
WHEN 'B' THEN dbms_output.put_line('Very Good');
WHEN 'C' THEN dbms_output.put_line('Good');
WHEN 'D' THEN dbms_output.put_line('Fair');
WHEN 'F' THEN dbms_output.put_line('Poor');
ELSE dbms_output.put_line('No such grade');
END CASE;
The CASE statement is more readable and more efficient. So, when possible, rewrite lengthy IF-THEN-ELSIF statements as CASE statements.
The CASE statement begins with the keyword CASE. The keyword is followed by a selector, which is the variable grade in the last example. The selector expression can be arbitrarily complex. For example, it can contain function calls. Usually, however, it consists of a single variable. The selector expression is evaluated only once. The value it yields can have any PL/SQL datatype other than BLOB, BFILE, an object type, a PL/SQL record, an index-by-table, a varray, or a nested table.
The selector is followed by one or more WHEN clauses, which are checked sequentially. The value of the selector determines which clause is executed. If the value of the selector equals the value of a WHEN-clause expression, that WHEN clause is executed. For instance, in the last example, if grade equals 'C', the program outputs 'Good'. Execution never falls through; if any WHEN clause is executed, control passes to the next statement.
The ELSE clause works similarly to the ELSE clause in an IF statement. In the last example, if the grade is not one of the choices covered by a WHEN clause, the ELSE clause is selected, and the phrase 'No such grade' is output. The ELSE clause is optional. However, if you omit the ELSE clause, PL/SQL adds the following implicit ELSE clause:
ELSE RAISE CASE_NOT_FOUND;
If the CASE statement selects the implicit ELSE clause, PL/SQL raises the predefined exception CASE_NOT_FOUND. So, there is always a default action, even when you omit the ELSE clause.
The keywords END CASE terminate the CASE statement. These two keywords must be separated by a space. The CASE statement has the following form:
[<,<label_name>>]
CASE selector
WHEN expression1 THEN sequence_of_statements1;
WHEN expression2 THEN sequence_of_statements2;
...
WHEN expressionN THEN sequence_of_statementsN;
[ELSE sequence_of_statementsN+1;]
END CASE [label_name];
Like PL/SQL blocks, CASE statements can be labeled. The label, an undeclared identifier enclosed by double angle brackets, must appear at the beginning of the CASE statement. Optionally, the label name can also appear at the end of the CASE statement.
Exceptions raised during the execution of a CASE statement are handled in the usual way. That is, normal execution stops and control transfers to the exception-handling part of your PL/SQL block or subprogram.
An alternative to the CASEstatement is the CASE expression, where each WHEN clause is an expression.
Searched CASE Statement
PL/SQL also provides a searched CASE statement, which has the form:
[<,<label_name>>]
CASE
WHEN search_condition1 THEN sequence_of_statements1;
WHEN search_condition2 THEN sequence_of_statements2;
...
WHEN search_conditionN THEN sequence_of_statementsN;
[ELSE sequence_of_statementsN+1;]
END CASE [label_name];
The searched CASE statement has no selector. Also, its WHEN clauses contain search conditions that yield a Boolean value, not expressions that can yield a value of any type. An example follows:
CASE
WHEN grade = 'A' THEN dbms_output.put_line('Excellent');
WHEN grade = 'B' THEN dbms_output.put_line('Very Good');
WHEN grade = 'C' THEN dbms_output.put_line('Good');
WHEN grade = 'D' THEN dbms_output.put_line('Fair');
WHEN grade = 'F' THEN dbms_output.put_line('Poor');
ELSE dbms_output.put_line('No such grade');
END CASE;
The search conditions are evaluated sequentially. The Boolean value of each search condition determines which WHEN clause is executed. If a search condition yields TRUE, its WHEN clause is executed. If any WHEN clause is executed, control passes to the next statement, so subsequent search conditions are not evaluated.
If none of the search conditions yields TRUE, the ELSE clause is executed. The ELSE clause is optional. However, if you omit the ELSE clause, PL/SQL adds the following implicit ELSE clause:
ELSE RAISE CASE_NOT_FOUND;
Exceptions raised during the execution of a searched CASE statement are handled in the usual way. That is, normal execution stops and control transfers to the exception-handling part of your PL/SQL block or subprogram.
Guidelines for PL/SQL Conditional Statements
Avoid clumsy IF statements like those in the following example:
IF new_balance < minimum_balance THEN
overdrawn := TRUE;
ELSE
overdrawn := FALSE;
END IF;
...
IF overdrawn = TRUE THEN
RAISE insufficient_funds;
END IF;
This code disregards two useful facts. First, the value of a Boolean expression can be assigned directly to a Boolean variable. So, you can replace the first IF statement with a simple assignment, as follows:
overdrawn := new_balance < minimum_balance;
Second, a Boolean variable is itself either true or false. So, you can simplify the condition in the second IF statement, as follows:
IF overdrawn THEN ...
When possible, use the ELSIF clause instead of nested IF statements. That way, your code will be easier to read and understand. Compare the following IF statements:
IF condition1 THEN
statement1;
ELSE
IF condition2 THEN
statement2;
ELSE
IF condition3 THEN
statement3;
END IF;
END IF;
END IF;
IF condition1 THEN
statement1;
ELSIF condition2 THEN
statement2;
ELSIF condition3 THEN
statement3;
END IF;
END IF;
END IF;
These statements are logically equivalent, but the first statement obscures the flow of logic, whereas the second statement reveals it.
If you are comparing a single expression to multiple values, you can simplify the logic by using a single CASE statement instead of an IF with several ELSIF clauses.
Iterative Control: LOOP and EXIT Statements
LOOP statements let you execute a sequence of statements multiple times. There are three forms of LOOP statements: LOOP, WHILE-LOOP, and FOR-LOOP
LOOP
The simplest form of LOOP statement is the basic (or infinite) loop, which encloses a sequence of statements between the keywords LOOP and END LOOP, as follows:
LOOP
sequence_of_statements
END LOOP;
With each iteration of the loop, the sequence of statements is executed, then control resumes at the top of the loop. If further processing is undesirable or impossible, you can use an EXIT statement to complete the loop. You can place one or more EXIT statements anywhere inside a loop, but nowhere outside a loop. There are two forms of EXIT statements: EXIT and EXIT-WHEN.
EXIT
The EXIT statement forces a loop to complete unconditionally. When an EXIT statement is encountered, the loop completes immediately and control passes to the next statement. An example follows:
LOOP
...
IF credit_rating < 3 THEN
...
EXIT; -- exit loop immediately
END IF;
END LOOP;
-- control resumes here
The next example shows that you cannot use the EXIT statement to complete a PL/SQL block:
BEGIN
...
IF credit_rating < 3 THEN
...
EXIT; -- not allowed
END IF;
END;
Remember, the EXIT statement must be placed inside a loop. To complete a PL/SQL block before its normal end is reached, you can use the RETURN statement.
EXIT-WHEN
The EXIT-WHEN statement lets a loop complete conditionally. When the EXIT statement is encountered, the condition in the WHEN clause is evaluated. If the condition is true, the loop completes and control passes to the next statement after the loop. An example follows:
LOOP
FETCH c1 INTO ...
EXIT WHEN c1%NOTFOUND; -- exit loop if condition is true
...
END LOOP;
CLOSE c1;
-- control resumes here
Until the condition is true, the loop cannot complete. So, a statement inside the loop must change the value of the condition. In the last example, if the FETCH statement returns a row, the condition is false. When the FETCH statement fails to return a row, the condition is true, the loop completes, and control passes to the CLOSE statement.
IF count > 100 THEN
EXIT;
END IF;
EXIT WHEN count > 100;
These statements are logically equivalent, but the EXIT-WHEN statement is easier to read and understand.
FOR-LOOP
Whereas the number of iterations through a WHILE loop is unknown until the loop completes, the number of iterations through a FOR loop is known before the loop is entered. FOR loops iterate over a specified range of integers. The range is part of an iteration scheme, which is enclosed by the keywords FOR and LOOP. A double dot (..) serves as the range operator. The syntax follows:
FOR counter IN [REVERSE] lower_bound..higher_bound LOOP
sequence_of_statements
END LOOP;
The range is evaluated when the FOR loop is first entered and is never re-evaluated.
As the next example shows, the sequence of statements is executed once for each integer in the range. After each iteration, the loop counter is incremented.
FOR i IN 1..3 LOOP -- assign the values 1,2,3 to i
sequence_of_statements -- executes three times
END LOOP;
The following example shows that if the lower bound equals the higher bound, the sequence of statements is executed once:
FOR i IN 3..3 LOOP -- assign the value 3 to i
sequence_of_statements -- executes one time
END LOOP;
By default, iteration proceeds upward from the lower bound to the higher bound. However, as the example below shows, if you use the keyword REVERSE, iteration proceeds downward from the higher bound to the lower bound. After each iteration, the loop counter is decremented. Nevertheless, you write the range bounds in ascending (not descending) order.
FOR i IN REVERSE 1..3 LOOP -- assign the values 3,2,1 to i
sequence_of_statements -- executes three times
END LOOP;
Inside a FOR loop, the loop counter can be referenced like a constant but cannot be assigned values, as the following example shows:
FOR ctr IN 1..10 LOOP
IF NOT finished THEN
INSERT INTO ... VALUES (ctr, ...); -- legal
factor := ctr * 2; -- legal
ELSE
ctr := 10; -- not allowed
END IF;
END LOOP;
WHILE-LOOP
The WHILE-LOOP statement associates a condition with a sequence of statements enclosed by the keywords LOOP and END LOOP, as follows:
WHILE condition LOOP
sequence_of_statements
END LOOP;
Before each iteration of the loop, the condition is evaluated. If the condition is true, the sequence of statements is executed, then control resumes at the top of the loop. If the condition is false or null, the loop is bypassed and control passes to the next statement. An example follows:
WHILE total <= 25000 LOOP
...
SELECT sal INTO salary FROM emp WHERE ...
total := total + salary;
END LOOP;
The number of iterations depends on the condition and is unknown until the loop completes. The condition is tested at the top of the loop, so the sequence might execute zero times. In the last example, if the initial value of total is larger than 25000, the condition is false and the loop is bypassed.
Some languages have a LOOP UNTIL or REPEAT UNTIL structure, which tests the condition at the bottom of the loop instead of at the top. Therefore, the sequence of statements is executed at least once. PL/SQL has no such structure, but you can easily build one, as follows:
LOOP
sequence_of_statements
EXIT WHEN boolean_expression;
END LOOP;
To ensure that a WHILE loop executes at least once, use an initialized Boolean variable in the condition, as follows:
done := FALSE;
WHILE NOT done LOOP
sequence_of_statements
done := boolean_expression
END LOOP;
A statement inside the loop must assign a new value to the Boolean variable. Otherwise, you have an infinite loop. For example, the following LOOP statements are logically equivalent:
LOOP
...
END LOOP;
WHILE TRUE LOOP
...
END LOOP;
Sequential Control: GOTO and NULL Statements
Unlike the IF and LOOP statements, the GOTO and NULL statements are not crucial to PL/SQL programming. The structure of PL/SQL is such that the GOTO statement is seldom needed. Occasionally, it can simplify logic enough to warrant its use. The NULL statement can improve readability by making the meaning and action of conditional statements clear.
Overuse of GOTO statements can result in complex, unstructured code (sometimes called spaghetti code) that is hard to understand and maintain. So, use GOTO statements sparingly. For example, to branch from a deeply nested structure to an error-handling routine, raise an exception rather than use a GOTO statement.
NULL Statement
The NULL statement does nothing other than pass control to the next statement. In a conditional construct, the NULL statement tells readers that a possibility has been considered, but no action is necessary. In the following example, the NULL statement shows that no action is taken for unnamed exceptions:
EXCEPTION
WHEN ZERO_DIVIDE THEN
ROLLBACK;
WHEN VALUE_ERROR THEN
INSERT INTO errors VALUES ...
COMMIT;
WHEN OTHERS THEN
NULL;
END;
In IF statements or other places that require at least one executable statement, the NULL statement to satisfy the syntax. In the following example, the NULL statement emphasizes that only top-rated employees get bonuses:
IF rating > 90 THEN
compute_bonus(emp_id);
ELSE
NULL;
END IF;
Also, the NULL statement is a handy way to create stubs when designing applications from the top down. A stub is dummy subprogram that lets you defer the definition of a procedure or function until you test and debug the main program. In the following example, the NULL statement meets the requirement that at least one statement must appear in the executable part of a subprogram:
PROCEDURE debit_account (acct_id INTEGER, amount REAL) IS
BEGIN
NULL;
END debit_account;
GOTO Statement
The GOTO statement branches to a label unconditionally. The label must be unique within its scope and must precede an executable statement or a PL/SQL block. When executed, the GOTO statement transfers control to the labeled statement or block. In the following example, you go to an executable statement farther down in a sequence of statements:
BEGIN
...
GOTO insert_row;
...
<<insert_row>>
INSERT INTO emp VALUES ...
END;
In the next example, you go to a PL/SQL block farther up in a sequence of statements:
BEGIN
...
<<update_row>>
BEGIN
UPDATE emp SET ...
...
END;
...
GOTO update_row;
...
END;
The label end_loop is not allowed if it does not precede an executable statement, just add the NULL statement to debug the statement before end_loop as NULL is executable. The GOTO statement branches to the first enclosing block in which the referenced label appears.
|
